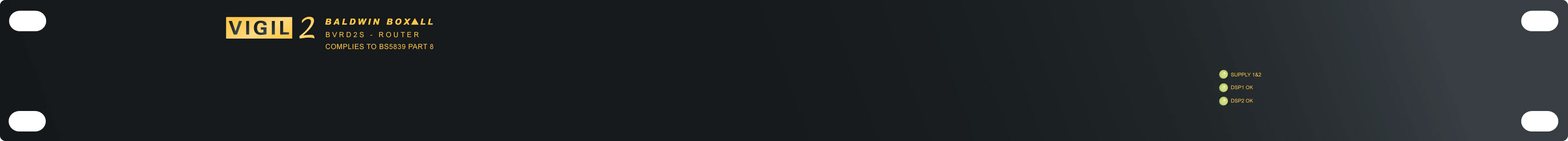

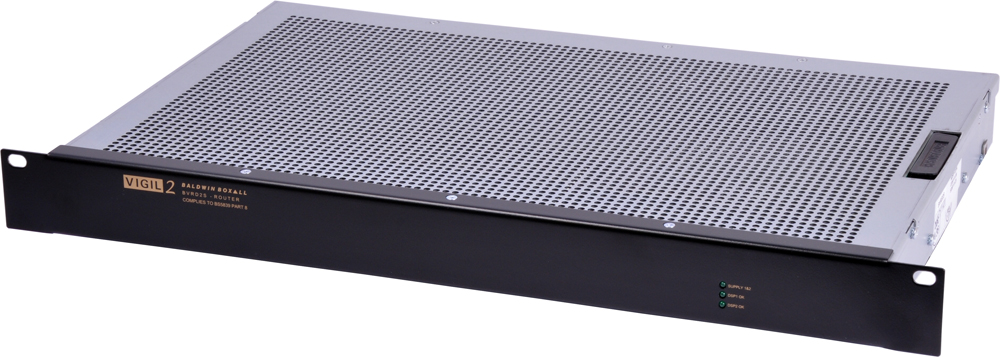

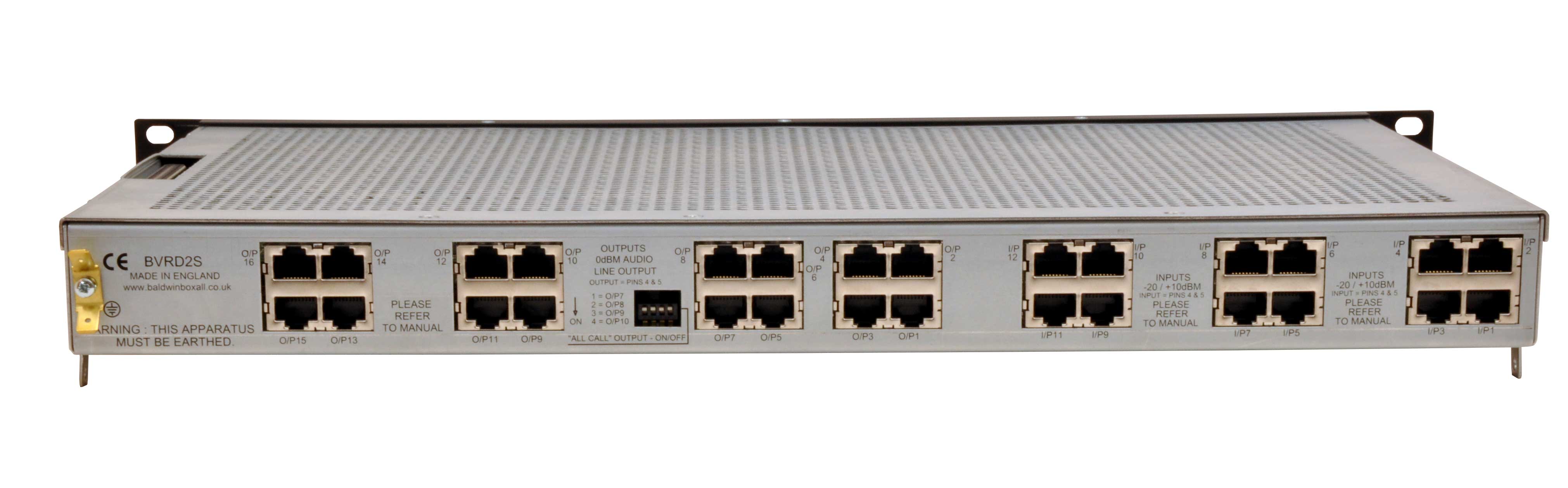

EN54-16 Slave Matrix

Code article : BVRD2S, BVRD2SLT

Le BVRD2S et le BVRD2SLT are two EN54-16 extension modules for the BVRD2M matrix. They add inputs, outputs and messages to BVRD2M.

  • BVRD2S : +12 inputs, +16 outputs, + 12 messages
  • BVRD2SLT : +6 inputs, +8 outputs, + 6 messages

Up to 5 slave units can be added to each BVRD2M via internal data link.

DSP-ControlThe BVRD2SLT can be upgraded to a BVRD2S simply by adding a DSP-control card and removing blanking plates
SwitchThe ‘bypass all call enable’ switch can be used to prevent an ‘all call’ message from being broadcast to the selected outputs. This is often used if one of the outputs is being used as a local monitor.
