All-in-one EN54-16 system

Code article : ECLISPE3

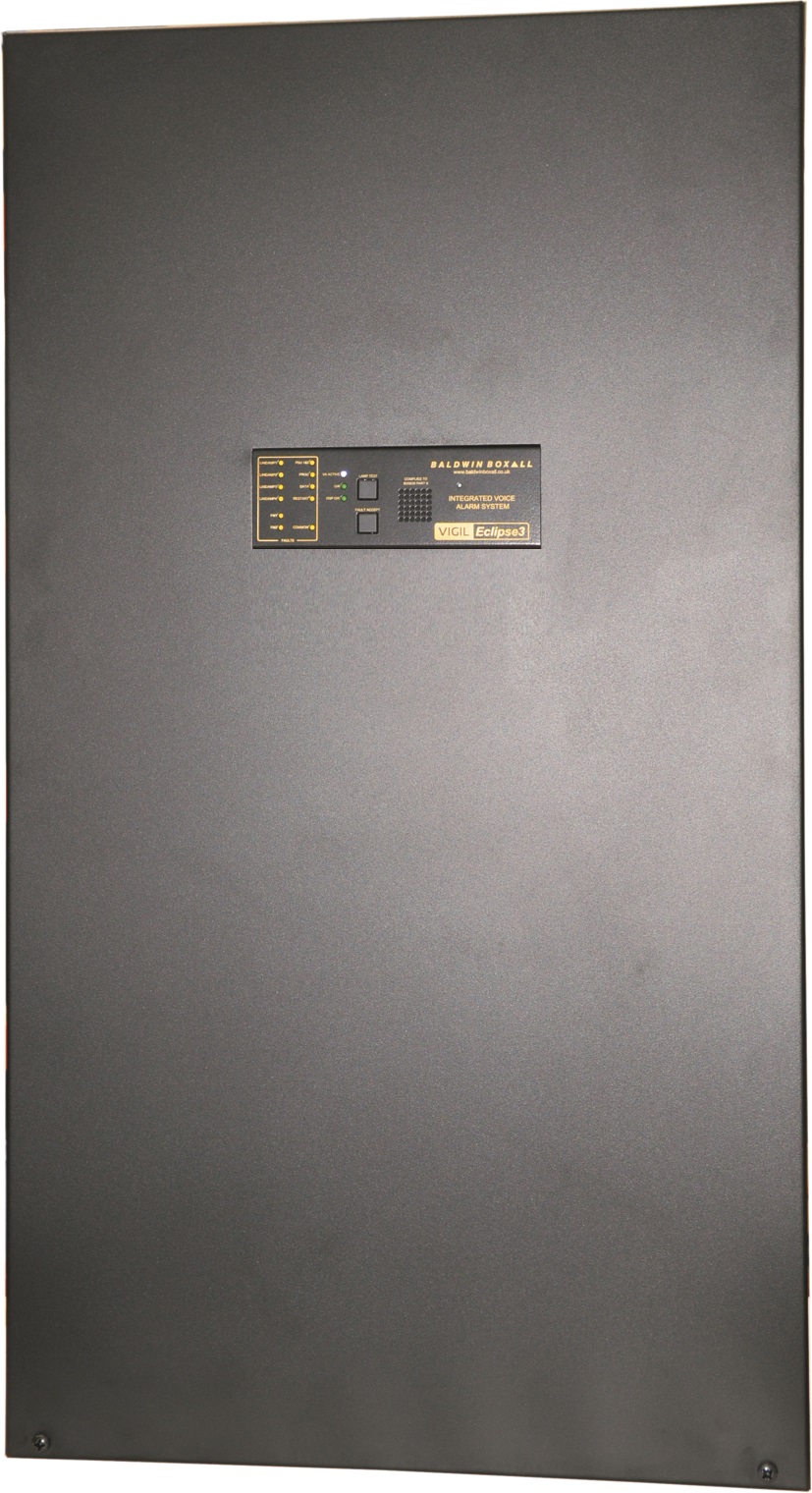

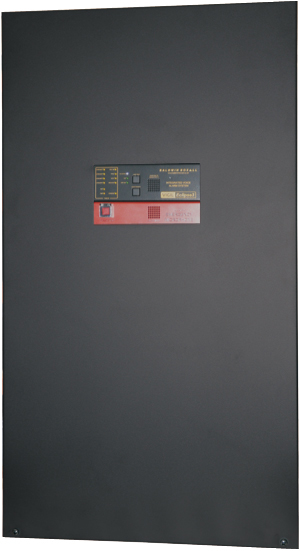

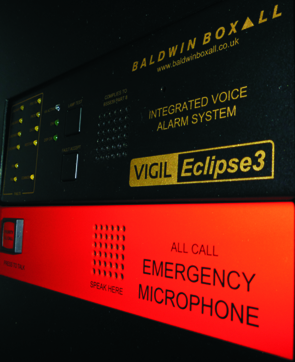

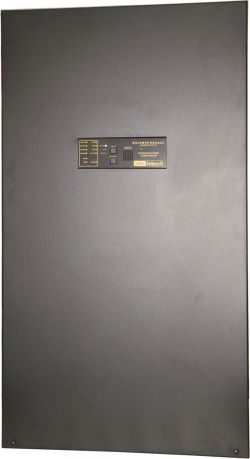

ECLIPSE 3 is a wall-mountable composed of all seurite sound system elements with the standard EN54-16.

Possibility of cabling :

  • 1 BVRD2M4 matrix
  • 2 BV125D / BV225 / BV050Q range amplifier
  • 1 BVSMP or BVSMPM power supply (if just one amplifier)
Inputs4, balanced
Outputs4, balanced
Connectors2 RS485
Bandwidth-3 dB at 30 Hz and20 kHz
Power supply230V AC 700V/A
Dimensions in mm500 (l) x 900 (h) x 180 (p)
