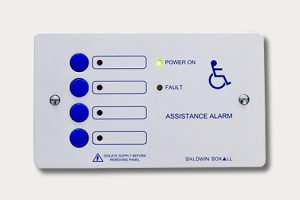

Control Panel for Disabled Toilet Alarm Kits

Code article : DTA4, DTA4S, DTAKIT, DTASKIT

Stylish, 4-way disabled toilet alarm control panel for use with our toilet alarm kits

Disabled toilet alarms are used as a method for people to call for assistance following a fall or other emergency. They are generally installed in disabled toilet cubicles, however, they can be used in other places such as bedrooms.

Our 4-way controller, together with our toilet alarm kits, forms a fully compliant (to BS8300), easy-to-use disabled toilet alarm solution.The controller has many advantages over similar products on the market today.

Toilet Alarm Control Panel Features:

  • Independent call accept/acknowledge button for each toilet alarm connected.

  • Monitored system, with fault LED to indicate if a ‘short’ or ‘open’ condition is detected.

  • Independent fault indicators for each line.

  • The panel has a built in mains supply and is simply installed via a fused spur (3A switched) – connection to a separate power supply is not required. An LED on the panel confirms that the system is powered and available for use.

  • Up to ten of the panels can be daisy chained for larger systems, without the need for any additional power source.

  • A separate relay output enables connection to an external beacon – providing the opportunity to add a remote indicator to alert staff in a different area.

  • Full compliance to BS8300 – with an acknowledge feature to reassure the caller that help is on the way (both audible and visual alarms change at the point of call when acknowledge button is pressed).
  • The system has a programmable alarm ‘re-sound’ feature. This will operate if a call has been acknowledged at the control unit, but is not reset at the point of call within the specified time.

  • Space to independently label each ‘zone’ for easy identification of the alarm call.

  • Choice of a white or stainless steel finish as standard.

  • For ease of installation, the panel fits into a standard double gang back box (not supplied).
